Cassette Type Inner Vacuum Single Facer | DK46

FOB Reference Price:Get Latest Price
$80,000.00 - $250,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DK46
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Upgrade service (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Material:
Paper
Type:
Other, Other
Applicable Industries:
Manufacturing Plant
Condition:
New
Packaging Type:
Cartons, Case
Automatic Grade:
Automatic
Driven Type:
Hydraulic
Voltage:
380V
Power:
93KW
Place of Origin:
China
Brand Name:
West River
Weight:
18tons
Dimension(L*W*H):
5500*2150*1700mm
Certification:
CE, ISO
Speed:
250m/min
Heating Type:
Steam
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
2 containers
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Video Description
Product Description

1. Model: DK46

2. Speed: 250m/Min

3. Standard: GB

4. Certification: ISO9001, CE

Features

50 mins Change Flutes
Inner vacuum structure, high strength cardboard production
Digital display, easily control, automatic alignment
Automatic gluing volume control
Paper brake auto detection and power brake protection
Low noise, equipped with silencer
Cast iron to reduce vibration
Auto clean

Model
DK46(Cassette Type Inner Vacuum)
Width
2500mm (other options: 1200-2500mm)
Working Speed
250m/Min (other options: 150, 200, 300m/min)
Power
~93KW
Dimension
5500*2150*1700mm
Press Roller
Φ430*2600mm, Hard Chrome Plating
Corrugated Roller
Φ430*2600mm, Hard Chrome Plating(HRC55-60)
Fast Change Assembly Part
(Roller Bracket + Corrugated Roller)*1, Change Flute for 50mins
Heating type
Steam(1.1-1.2MPa)
PLC
Siemens
Touch Screen
Panel Master
Electrical components
TE
Bearing
NSK
Motor
Haojie
Lubrication
High temperature grease
Carbide Tungsten Corrugated Roller
Option
Flute
A, B, C, E, F Option(UV type)
Centering Device
Option
Fast Change Trolley, Electro-motor (For assemble part Freight)
Option
Deliver day
50 days
Installation
By supplier
Warranty
1 year
Products Show
Cardboard Production
Our Company

Engineers Service To Different Countries

Exhibistions Global

Our Factory

China National Standard Set Up By West River

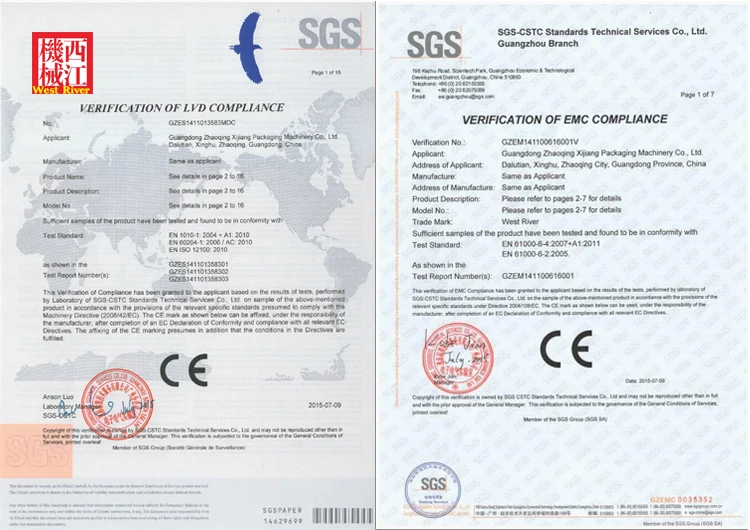

Certifications

ISO 9001

CE

Single Machines

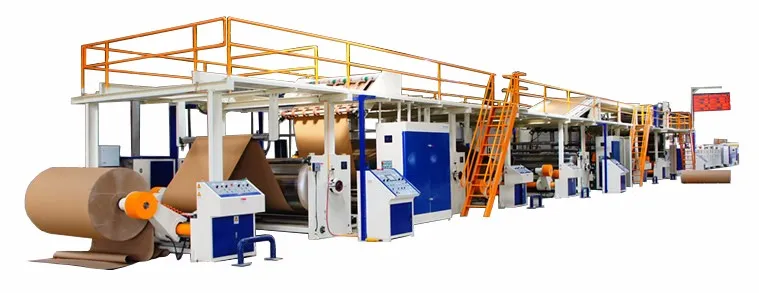

COMPLETE CORRUGATED CARDBOARD PRODUCTION LINE

*Siemens profibus control system

*Intelligent tempearture control and steam saving system

*Automatic tension and balance tension control

*International advanced intelligent pressure loading system, vector pressure loading control

*High speed and low noise control

*Provide free customized whole carton plant design, auto logistics design, equipment placement and installation, ERP system connection, local employee training

*Modular design, easy for upgrate and Maintenance

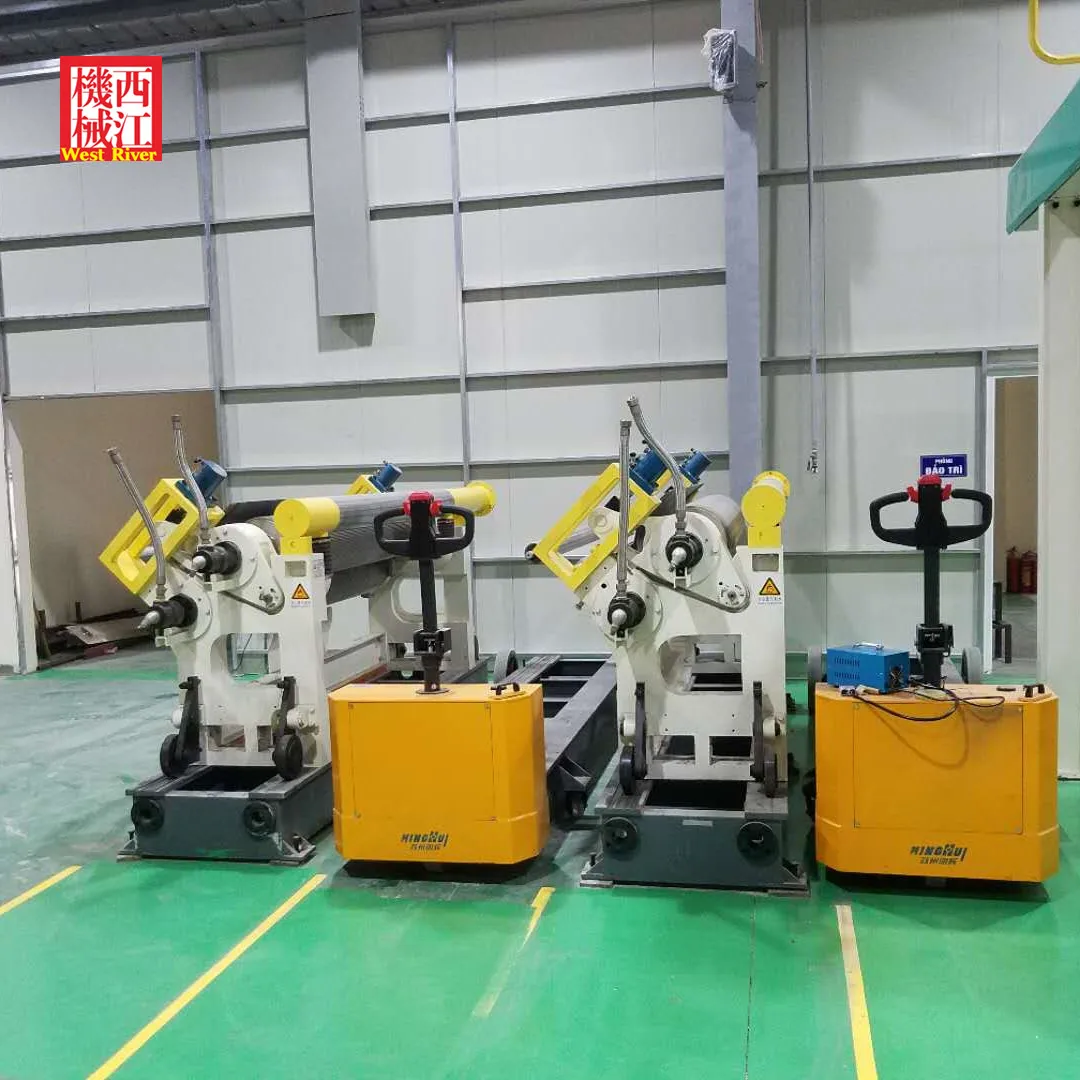

Hydraulic Mill Roll Stand

*Made of QT450(cast iron), Single arm loads 3000kg

*Internal expanding type Clamp chuck without damage roll paper core

*Multi-point brake realizes perfect tension balance control

*Heavy rail track to convey roll paper smoothly

*Auto-centering device ensure the centering of Roller paper

*Connect to the PLC network to realize synchronous control

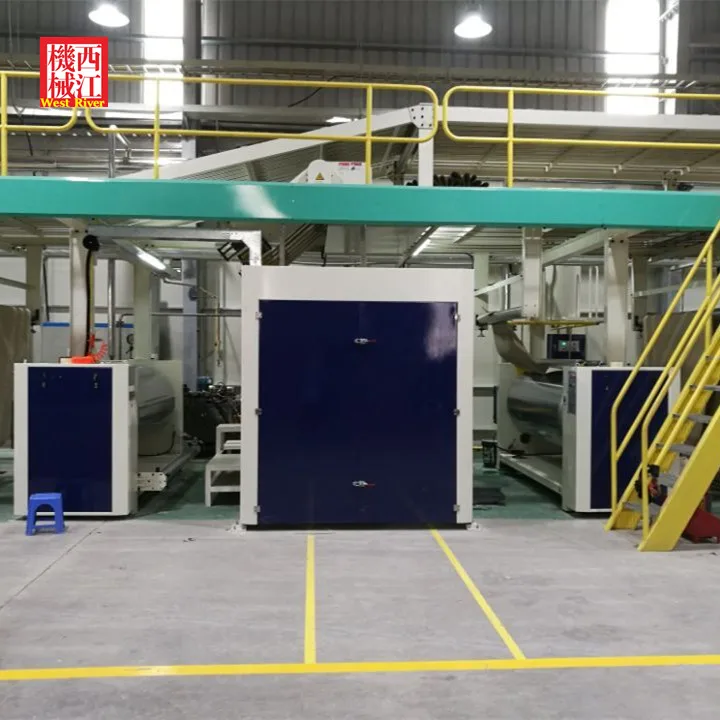

Single Facer

*Industrial 4.0 Design, user-friendly interface, achieve data statistic and automation

*Centering control adjustment

*Auto contol gluing thickness accoding to speed, might set up by operator to EMS memory

* International directly drive mode, easy for maintenance

*Cast Iron modular low noise design

*PLC network control through Profibus control system

*Auto Paper Brake Detecting


Pre-Heater

*PLC control Wrap Angle 60-280 degree adjustment according to the speed to realized high quality cardboard production

*Tension balace shaft control

*Chinese national standard of high-pressure boiler plate

*Rotary structure meet the high speed production

*Modular design, able to form a multi-preheater

*Can be equipped with sprayer to adjust moiture of kraft paper


Span Bridge

*European design, high rigidity stell compound structure paper guiding device

*PLC network control optimize paper quantity accumulation on the bridge, realize zero crease

*Automatic tension control and correction system, each layer of single face board and liner paper adhere accurately

Glue Machine

*Modular design, ensure single face board enter the glue machine with smooth and small angle, reduce paper braking ratio

*Simple touch screen interface, PLC servo control system, easy for maintenance

*Paper braking auto detection

Double Facer

*European advanced energy-saving design, up to 30% energy saving

*Intellgent vector press control, auto adjust according to different type of cardboard production

*High-pressure hot plates of high performance thermal compensation, achieve quick gelatinization

*Automatic temperature control system fit into different cardboard production

*Heavy dual power drive section, Paper entry pretection to avoid danger

Computer Control Slitter Scorer

*Adopted indrustrial ethernet, perfect control with dry section

*Realize 0s order change production with Rotary shearer, waste reduce up to 35cm, auctomatic arrange orders

*High precision ball screw and liner guide rail, 3s perfect accurate positioning, 0 score distance

* equipped with displacement memory function, eliminate accumulating errors, could assure long-term precision stability, order change precision ± 0.5mm

Cut-Off Machine

*Duel Phase AC servo motor, direct drive,

*UK.CT control system

*Module group of the high voltage capacitance, collect power fed back by each breke, might save 30% electric power

*Indrustrial ethernet connection with whole system



PLC Control Automatic Conveyor And Stacker

*German Siemens servo system

*Up to 300 m/min

Auto Splicer

*Increase up to 35% production speed

*Paper splicing distance reduce below to 10cm

Auto Tension Control And Correction Device


Auto Glue Making System


Customer Image

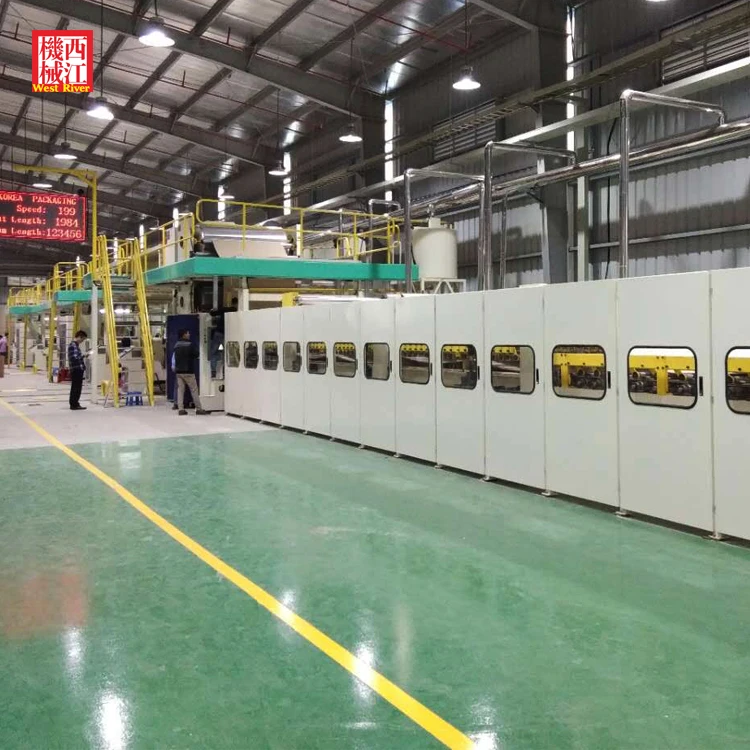

IRAN CASPIAN

The biggest cardboard suppliers in Iran, supplies cardboard to not only Iran demestic market, but also to Iraq, Armenia, Tajikistan, Afghanistan...

KOREA KOPAC

Based in Vietnam to serve Samsung there, they produce high quality cardboards for TV and other household applicances package.
